Truck Wheel Balancer - B9280 - Snap-On / Italy

Truck Wheel Balancer - B9280 - Snap-On / Italy

B9280

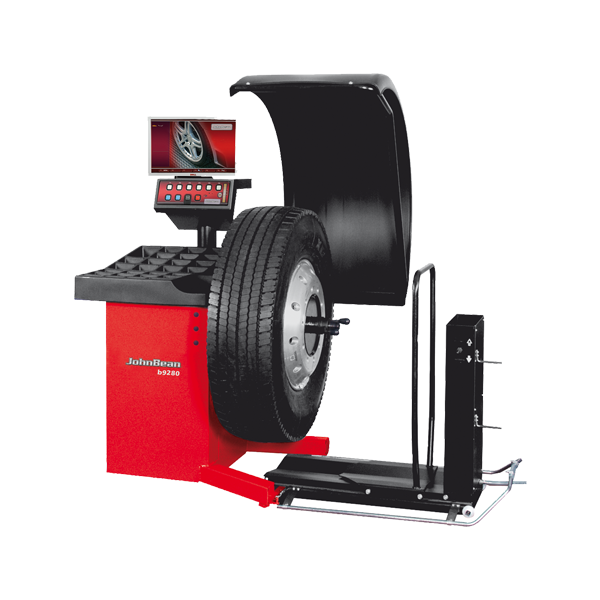

MOTORISED TRUCK WHEEL BALANCER WITH MONITOR

DESCRIPTION

The truck wheel balancer b9280 measures both the static and the dynamic portion of unbalance and hence increases truck wheel life considerably. The balancer is equipped with a TFT wide-screen monitor and asanetwork capability.

Automatic input of offset and rim diameter (2D SAPE)
Input of rim width via capacitive keypad
Electronic friction brake to retain the wheel in any position
Patented virtual plane imaging (VPI) technique
Weight tray with 27 weight compartments and shelves for car cones and weight pliers
Measuring speed less than 100 rpm
Automatic braking of the wheel after measurement
Automatic static and dynamic unbalance measurement in a single measuring run
Cone adaptor with spacer and light-truck cone of 120 – 170 mm diameter
Gauge arm with patented wheel weight clamp to input wheel data and position adhesive weights
Hidden weight mode
Patented optimisation mode
19“ TFT wide-screen monitor
Comprehensive on-line help in more than 25 languages
asanetwork capability

Features

PNEUMATIC LOADING DEVICE	QUICKBAL™	VPM TECHNIQUE

The plus models are certified by wdk. They come standard with MH 320 pro and plus kit that enable the correct mounting and demounting of UHP and run-flat tyres.	30% reduced cycle time, less than 4,5 seconds, maintaining the same high accuracy.	Measurement system for high precision and repeatability.
