Low Profile Lift – 4.5 Ton – VLXS10

Call Us Now : +964 7503 794 624

Low Profile Lift – 4.5 Ton – VLXS10 – Rotary / USA

Untitled 1

Low Profile Lift – 4.5 Ton – VLSX10 – Rotary/ USA

VLSX10

Capacity: 10,000 lbs.

Electro-Hydraulic / Dual Cyilnder /For Tyre and Brake Work

DESCRIPTION

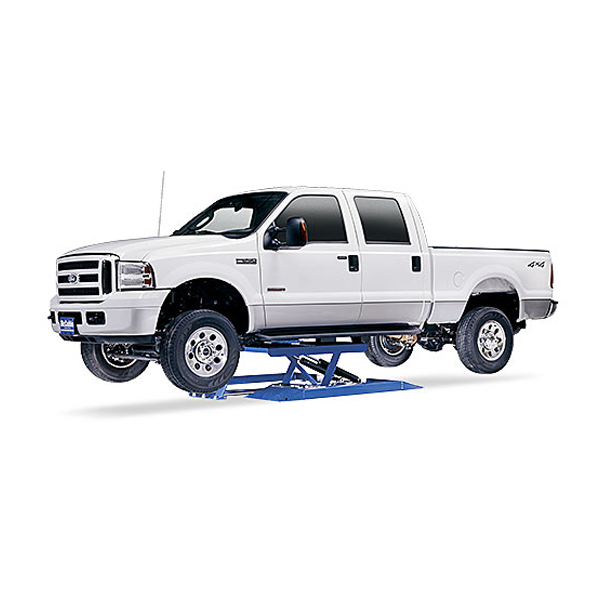

The VLXS10 is your solution for quick service operation on today’s passenger cars and trucks up to 10,000 lbs. Tire and brake work can now be performed on a wider variety of vehicles, thanks to the lift’s pads, adapters, wider drive-over capability, and increased lifting capacity.

Keep Your Bays Moving With Our Low Rise Lift!

Driver-over ramps and side rails support wider vehicles on approach

Dual lifting cylinders for smooth lifting

(4) heat resistant pads

10,000 lbs. capacity

(4) 1 1/2″ rubber blocks

(4) three-position adapters

ALI Gold Certified (VLXS10000)

SPECIFICATIONS

Capacity	4500 kg
Rise High Step / Tall Pad	30-5/16"
Rise Mid Step	28-1/16"
Rise Low Step	26-1/16"
Rise Short Pad	23-1/4"
Rise Flat	21-3/4"
Length Overall	90-1/2"
Width Overall	78-1/2"
Width Between Platforms	22-3/4"
Length of Platform	51-1/4"
Length of Pad	17"
Outside Width of Platforms	70-3/4"
Horizontal Movment (During Rise)	16"
Collapsed Height	4"
Locking Leg Heights	13 3/8" - 17 3/8" - 21 3/8"
Voltage	230V / Single Ph.
Time of Full Rise	40 Secs
