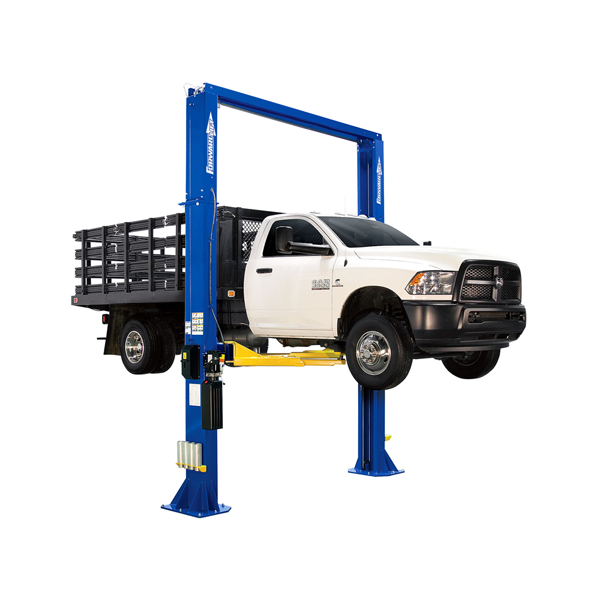

Two Post Lift – 8.1 Ton – DP 18–  Rotary / USA

DP 18

Capacity: 18,000 lbs.

Electro-Hydraulic / Clear Floor / Standard Arms / Symmetrical /Low profile arms and truck adapters

DESCRIPTION

The electro-hydraulic 2-post lifts of the DP Series convince by an outstanding pick-up area. The control system is available in a manual and an electric version, as well as different column heights.

• 18,000 lbs. capacity for raising most trucks and vans.
• Features symmetrical column design
• Direct-Pull Lifting - high efficiency, low maintenance technology
• Closed loop hydraulic system - protects against hydraulic contamination
• Powder coat paint is more durable than conventional coatings
• Third party tested and certified by ALI
• Padded shut-off bar
• Low profile arms and truck adapters
• Single point release lock at operations center

Capacity

18,000 Lbs

Rise

83"

Overall Height

175"

Height to Shut-Off

167-1/4"

Power supply voltage (electrical) / Amps

 230V/ 50Hz , 1ph , 20 Amps

Min. Ceiling Height

180"

Overall Floor Width

155"

inside Column Width

120"

Ceiling Height Min.

16'

Motor

 2HP

Drive Through

108-1/4"
