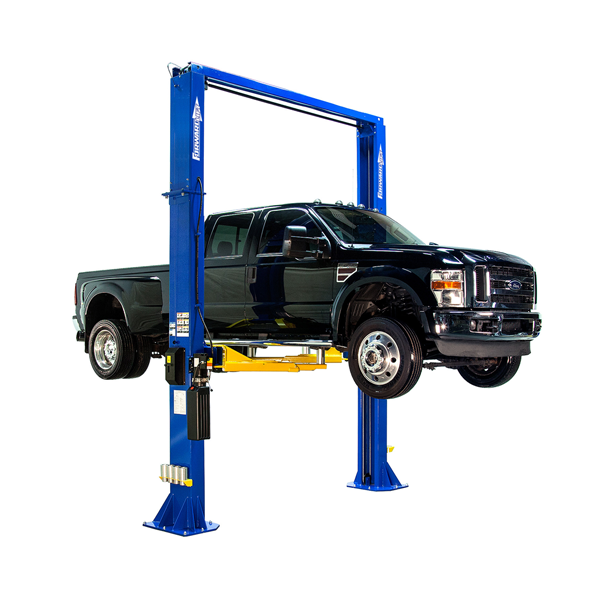

Two Post Lift – 6.5 Ton – DP 15–Rotary / USA

DP 15

Two Post Lift – 6.5 Ton – DP 15– Rotary / USA

DP 15

Capacity: 15,000 lbs.

Electro-Hydraulic / Clear Floor / Standard Arms / Symmetrical /Low profile arms and truck adapters

DESCRIPTION

The electro-hydraulic 2-post lifts of the DP Series convince by an outstanding pick-up area. The control system is available in a manual and an electric version, as well as different column heights

15,000 lbs. capacity for raising most trucks and vans.
Features symmetrical column design
Direct-Pull Lifting - high efficiency, low maintenance technology
Closed loop hydraulic system - protects against hydraulic contamination
Powder coat paint is more durable than conventional coatings
Third party tested and certified by ALI
Padded shut-off bar
Low profile arms and truck adapters
Single point release lock at operations center

SPECIFICATIONS

Capacity	15,000 Lbs
Rise	83"
Overall Height	175"
Height to Shut-Off	167-1/4"
Power supply voltage (electrical) / Amps	230V/ 50Hz , 1ph , 20 Amps
Min. Ceiling Height	180"
Overall Floor Width	155"
inside Column Width	120"
Ceiling Height Min.	16'
Motor	2HP
Drive Through	108-1/4"
